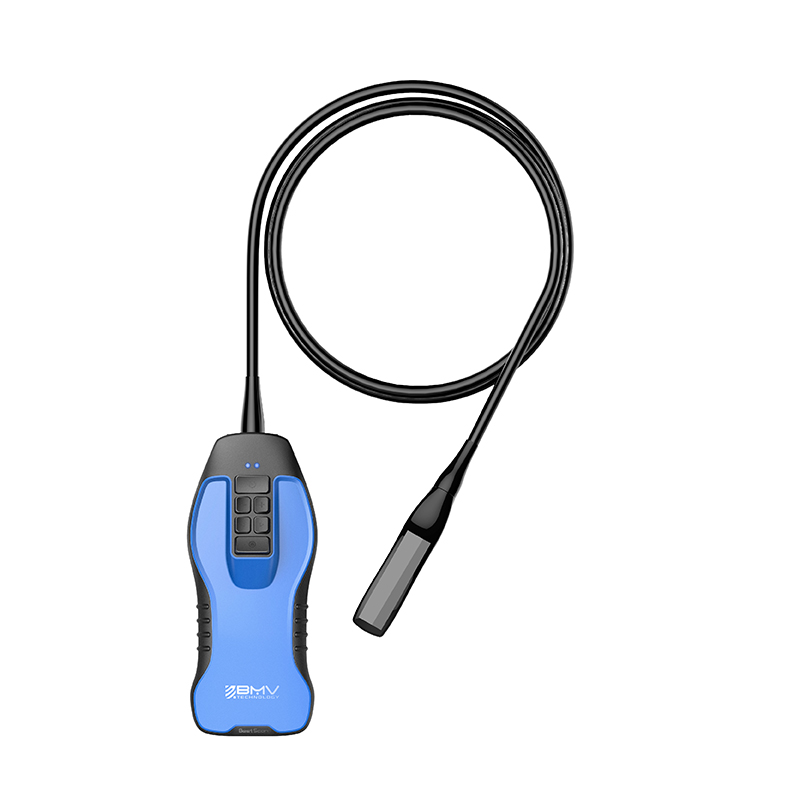

BestScan®S9 Ultra is an IF Winner 2021 wireless flagship veterinary ultrasound system specifically engineered for livestock and small animals including bovine, equine, ovine and swine. Equipped with intelligent HD imaging technology featuring 32 channels and 192 crystal array, it comes with two types of broadband rectal transducers, covering a frequency range of 2-11MHz with a maximum imaging depth of 31cm. Supporting 12-14 hours of continuous operation (up to 4 additional hours with video goggles), it connects quickly to multi-system smart devices in 10 seconds, compatible with tablets and TVs simultaneously. With IP54 dust and splash proof design, paired with patented BMV veterinary software and abundant accessories, it is widely used in reproductive health checks, bone and tendon diagnosis, providing accurate and efficient ultrasound solutions for livestock breeding and veterinary clinics.
BestScan®S9 Ultra is centered on IF award-winning design and flagship-level imaging configuration. Wireless connection and long battery life adapt to mobile scenarios, with strong adaptability to full-range animals and multi-sites, making it a high-end and precise ultrasound device for livestock breeding and veterinary clinics.
HD & Precise, Excellent Imaging
32 channels + 192 crystal array configuration, matched with 2-11MHz broadband transducers and 31cm maximum imaging depth. B/M mode delivers clear images for early accurate detection, suitable for multi-site examinations including reproductive organs, bones and tendons.
Wireless & Efficient, Flexible Connection
Supports fast connection to Android/IOS/Windows multi-system devices, compatible with tablets and TVs simultaneously for convenient switching. No complex operations required, significantly improving diagnosis efficiency in pastures and clinics.
Long Battery Life, Durable & Reliable
Built-in battery supports 12-14 hours of continuous work, with video goggles extendable by 4 hours via external power. IP54 dust and splash proof design adapts to complex pasture environments, supporting dual charging modes (DC power adapter & 12V car socket).
Full-Range Adaptation, Abundant Accessories
Suitable for bovine, equine, ovine, swine and other animals, covering reproductive, bone, abdominal and other multi-site diagnoses. Offers rich accessories including introducer sticks, backpacks and wireless remote controls, meeting mobile diagnosis and storage needs.
<
| Parameter Category
<
| Detailed Specifications
|
| Basic Configuration |
Model: BestScan®S9 Ultra Wireless Flagship Veterinary Ultrasound System
Core Award: IF Winner 2021
Product Positioning: Wireless Flagship Veterinary Ultrasound Device
Size & Weight: 185×80×35mm, 650g
Protection Rating: IP54 (Dust & Splash Proof)
Core Software: BMV Patented Veterinary Software |
| Performance Parameters |
Crystal Array: 192 crystal array
Channel Count: 32 channels
Transducer Types: Broadband Linear Rectal Transducer (Active Array Length 64mm), Broadband Rectal Curved Array Transducer (for deeper imaging)
Operating Frequency: 2-11MHz
Maximum Imaging Depth: 31cm
Imaging Modes: B-mode, M-mode

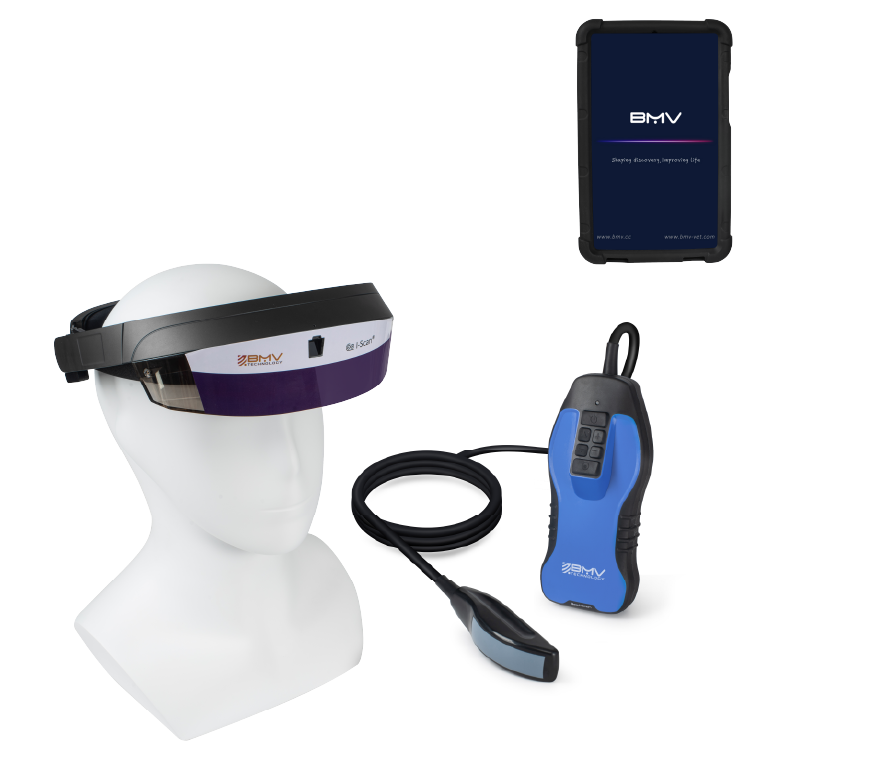

Viewing Devices: Android Smartphone/Tablet, i-Scan Goggles |
| Battery Life & Charging |
Continuous Working Time: 12-14 hours (Built-in Battery)
Extended Battery Life: Video goggles support external power for 4 additional hours
Charging Methods: DC Power Adapter Charging, 12V Car Socket Charging |
| Connection & Compatibility |
Compatible Systems: Android, IOS, Windows
Compatible Devices: Smartphones, Tablets, Laptops, TVs (Simultaneous Connection Supported)
Connection Feature: Fast Connection & Switching, Suitable for Mobile Diagnosis Scenarios |
| Clinical Applications |
Adaptable Animals: Bovine, Equine, Ovine, Swine
Applicable Sites: Uterus, Ovaries, Fetal Structure, Reproductive Tract, Equine Limbs, Tendons, Bones, Eyes, Abdomen, Thoracic Organs
Core Uses: Fetal Sex Determination, Reproductive Disease Diagnosis, Bone & Tendon Injury Detection, Organ Health Screening |
| Optional Accessories |

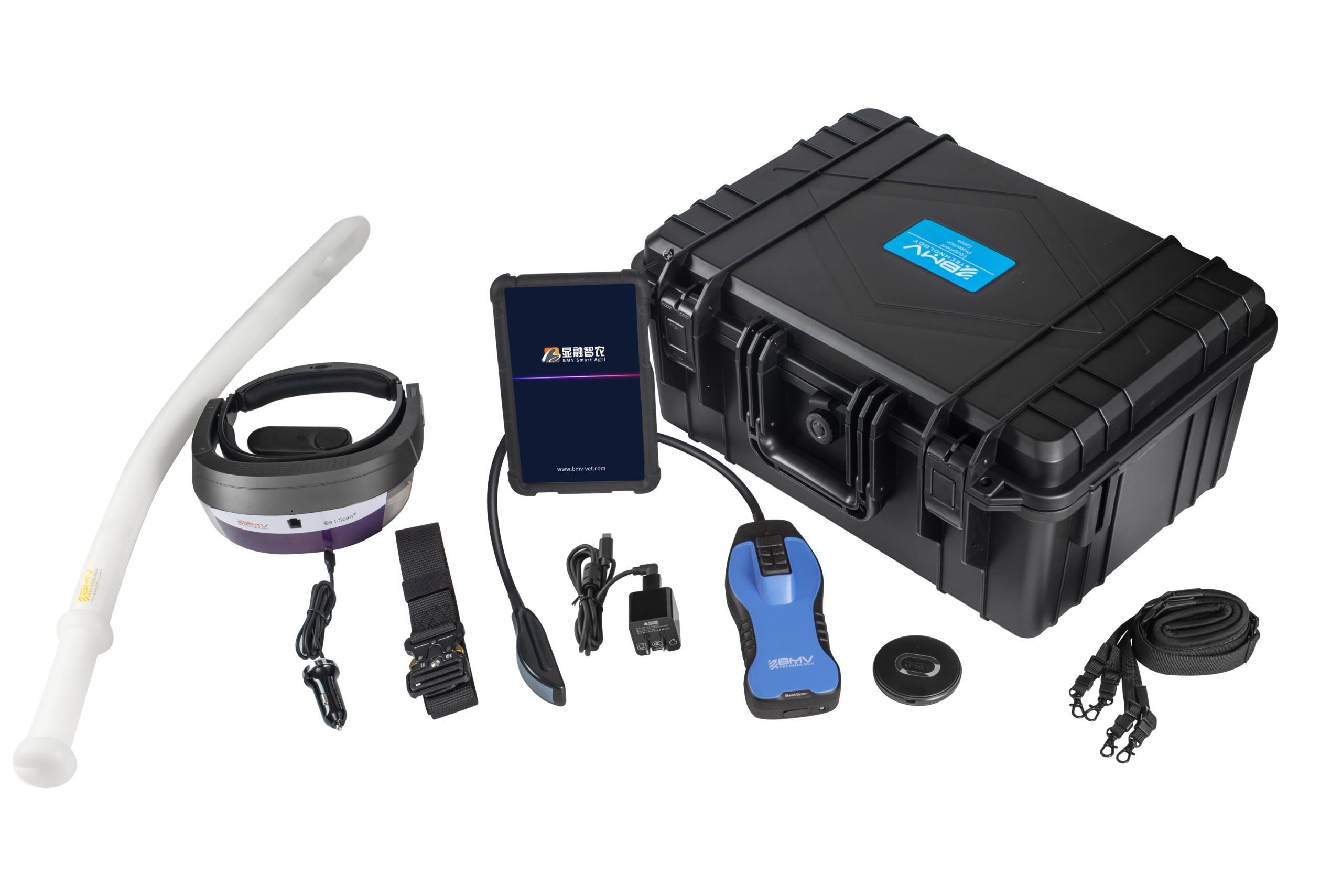

Introducer Stick, Binocular Lenses, Smart Device Adapters, Backpack, Belt, Wrist Straps, Portable Suitcase, Mobile Charger, Wireless Remote Control, Wireless Printing Devices, etc. |
Applicable Industries:
Livestock Breeding Industry, Pet Healthcare Industry, Animal Medical Research Field, Veterinary Diagnosis & Treatment Service Industry, Large-Scale Pastures
Target Users:
Large-Scale Pasture Veterinarians, Animal Reproductive Diagnosticians, Veterinary Ultrasound Physicians, Animal Medical Researchers, University Laboratory Teachers, Mobile Diagnosis Veterinarians
Application Environments:
Large-Scale Bovine/Equine Farms, Pet Hospital Ultrasound Rooms, Animal Research Laboratories, Outdoor Mobile Diagnosis Sites, University Teaching Laboratories, Livestock Veterinary Stations
Core Uses:
Animal Reproductive Health Checks (Fetal Sex Determination, Pregnancy Diagnosis), Reproductive Tract Disease Diagnosis, Equine Limb/Tendon/Bone Injury Detection, Thoracic/Abdominal Organ Screening, Research Data Collection & Analysis
