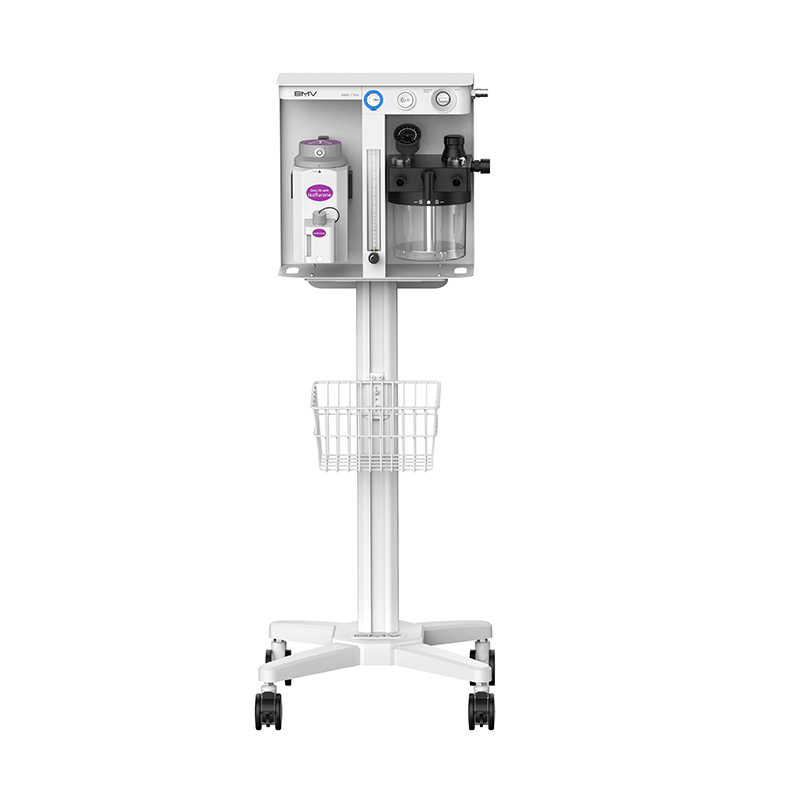

The BAM-7 Pro is the pro-grade high-end upgraded version of the BAM-7 series, designed exclusively for high-end pet diagnosis and treatment as well as animal medical research. Equipped with an intelligent airway pressure monitoring module, it provides real-time abnormal pressure warnings. It features the upgraded BMV Pro high-precision vaporizer with enhanced compensation performance, supporting more anesthetic types. Retaining the concealed pipeline anti-leakage design and paired with an optimized ACGO toggle switch, it enables millisecond-level breathing circuit switching. Suitable for high-end pet hospitals, university animal laboratories and large-scale livestock clinics, it balances precision and intelligence, serving as a core device for mid-to-high-end veterinary anesthesia.
The BAM-7 Pro Veterinary Anesthesia Machine integrates intelligent monitoring, precise drug delivery and full-scenario compatibility. Its pro-grade upgraded components meet mid-to-high-end diagnosis needs, with concealed anti-leakage pipelines and silent operation, making it the preferred choice for high-end veterinary anesthesia.
Intelligent Real-Time Pressure Monitoring for Enhanced Safety
The newly added intelligent pressure sensor module displays airway pressure data in real time and triggers abnormal alerts, ensuring more precise control of the entire anesthesia process and reducing anesthesia risks compared to the basic version.
Upgraded Maintenance-Free Vaporizer with Higher Compatibility
The upgraded BMV Pro vaporizer supports sevoflurane in addition to isoflurane and enflurane, requiring no calibration or maintenance, with dosage control accuracy improved to ±0.1VOL%.
Fully Compatible Breathing Circuit System for All Animal Sizes
The optimized all-metal ACGO toggle switch enables one-click switching between rebreathing and non-rebreathing modes, adapting to animals of 0.5kg-100kg and further reducing circuit mechanical dead space.
Ergonomic Multi-Mounting Design for Easier Operation
Retaining mobile trolley, wall mount and pendant mount options, it upgrades to silent universal wheels for trolleys and touch panels for wall mounts, adapting to different operating room layouts and improving medical staff efficiency.
| Parameter Category |
Detailed Specifications |
| Basic Information |
Model: BAM-7 Pro Vet Anesthesia Machine
Design: Sleek & compact with concealed pipelines (anti-leakage, anti-wear, anti-twisting) |
| Material Specifications |
Gas-contact materials: Autoclavable up to 134℃ (except mechanical pressure gauge)
Safety: Latex-free |
| Gas Supply Parameters |
Gas supply pressure: 0.28~0.6MPa (O₂)
Oxygen flowmeter range: 0~4L/min (optional: 0~10L/min)
Oxygen flush flow: 25L/min~75L/min |
| Mounting Methods |
Mobile trolley; Wall mount; Pendant mount |
| Transportation Environment |
Temperature: -20~55℃
Humidity: 10%~95% (non-condensing)
Atmospheric pressure: 50~106Kpa |
Applicable Industries:
High-end pet healthcare industry, animal medical research field, large-scale livestock veterinary diagnosis and treatment institutions, animal disease prevention and control centers
Target Users:
Anesthesiologists in high-end pet hospitals, researchers in university animal laboratories, attending veterinarians in large-scale livestock clinics
Application Environments:
Sterile operating rooms of high-end pet hospitals, animal research laboratories, operation rooms of large-scale livestock diagnosis and treatment centers
