AniSurg™ BUS-38 is a high-performance ultrasonic scalpel system specially designed for animal minimally invasive surgery, suitable for 95% of veterinary clinical surgical scenarios. The device is equipped with a multi-shape and multi-functional jaw that can achieve four operations: large-area coagulation, tissue dissection, drilling & point coagulation, and precise cutting. It is paired with three optional shaft lengths (14cm/23cm/36cm) and a 360° rotation wheel for flexible and dead-angle-free operation. Adopting a PTFE tissue pad with serration spacing < 0.5mm, it has strong grip and passed biocompatibility tests. Integrated with independently developed adaptive algorithms and frequency tracking technology, it can adjust output energy in real time to ensure cutting and coagulation effects. The device has lateral thermal damage < 1.5mm, no electric current passing through the animal body, and can safely coagulate blood vessels ≤5mm in diameter. With a blade diameter of only 5.5mm, the minimally invasive small incision facilitates rapid postoperative recovery, making it a reliable surgical tool for pet medicine and livestock veterinary surgery.
AniSurg™ BUS-38 Veterinary Ultrasonic Scalpel System covers the surgical needs of all departments with its multi-shape jaw. The low thermal damage and current-free design ensure surgical safety, intelligent speed regulation improves operation efficiency, and the minimally invasive small incision accelerates postoperative recovery. Its stable and portable features adapt to various diagnosis and treatment scenarios, making it an efficient and reliable choice for veterinary surgical operations.
Multi-shape Jaw, Suitable for Multi-department Surgeries
The jaw integrates four working modes: convex surface (large-area coagulation), concave surface (tissue dissection), blunt end (drilling & point coagulation), and sharp surface (precise cutting), meeting the needs of hepatobiliary, thoracic, urinary and other department surgeries.
Low Thermal Damage, High Surgical Safety
Lateral thermal damage is less than 1.5mm to effectively protect surrounding tissues. No electric current passes through the animal body, and it can safely coagulate blood vessels ≤5mm in diameter. No eschar or carbonization during surgery reduces the risk of postoperative infection.
Intelligent Speed Regulation, Efficient Synchronization of Cutting and Coagulation
Equipped with independently developed algorithms and frequency tracking technology to adjust output energy in real time. It supports 5 adjustable cutting speeds, and cutting and coagulation are completed synchronously to greatly improve surgical efficiency.
Minimally Invasive Design, Easier Postoperative Recovery
The 5.5mm-diameter blade enables small incisions, reducing postoperative pain and accelerating recovery, which alleviates pet suffering and owner care burden. The curved jaw design expands the field of view, and less smoke during surgery ensures clearer surgical vision.
| Parameter Category |
Detailed Specifications |
| Basic Configuration |

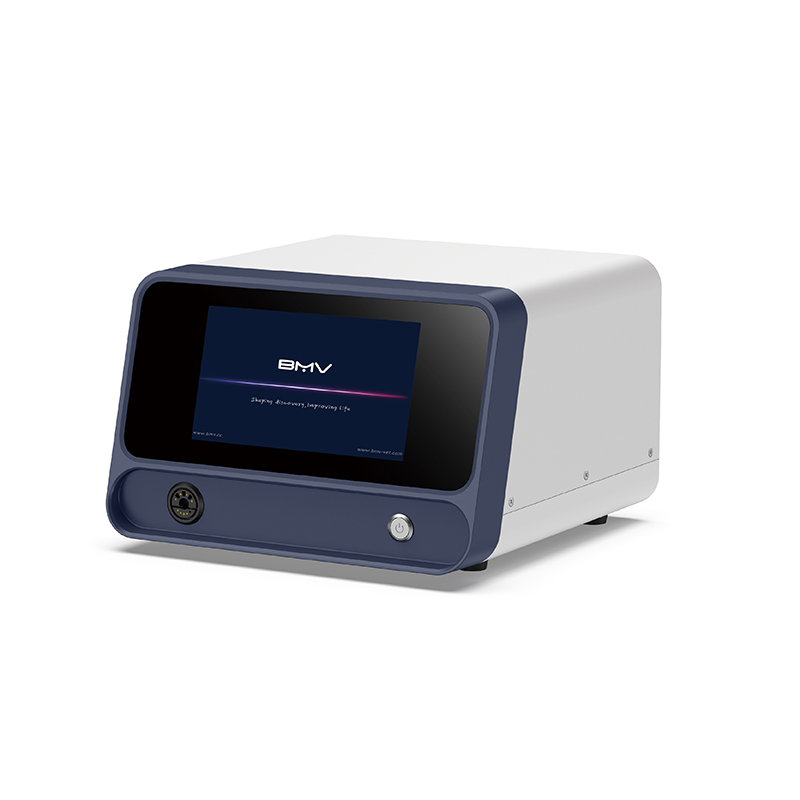

Model: AniSurg™ BUS-38 High-performance Veterinary Ultrasonic Scalpel System
Product Positioning: Veterinary Multi-department Minimally Invasive Surgical Equipment
Core Technologies: Independently Developed Adaptive Algorithm, Frequency Tracking Technology
Electric Shock Protection: CF-type Components, Class I Equipment |
| Performance Parameters |
Thermal Damage Range: Lateral Thermal Damage < 1.5mm
Coagulation Capacity: Safe Coagulation for ≤5mm Blood Vessels
Cutting Speed: 5 Adjustable Gears
Working Features: No Electric Current Through Animal Body, No Eschar or Carbonization, Less Smoke During Surgery |
| Structural Design |
Jaw Modes: Convex (Large-area Coagulation), Concave (Tissue Dissection), Blunt (Drilling & Point Coagulation), Sharp (Precise Cutting)
Shaft Lengths: 14cm/23cm/36cm (3 Options)
Rotation Function: 360° Shaft Rotation Wheel
Tissue Pad: PTFE Material, Serrration Spacing < 0.5mm, Biocompatibility Tested
Blade Diameter: 5.5mm |
| Electrical Parameters |
Main Power Input: 220V 50Hz 200VA
Output Parameters: 200VAC (Peak), 45W (Peak), 55.5kHz
Device Weight: 4.0kg
Device Dimensions: 575mm×410mm×250mm |
| Environmental Parameters |
Operating Temperature: -10℃ to 30℃, Atmospheric Pressure 70KPa-106KPa
Transportation & Storage: Prevent heavy pressure, collision, direct sunlight, rain and snow; Storage Temperature -20℃ to 55℃, Humidity 10%-93% No Condensation |
| Specification List |
Host Configuration: Generator (UG-100) ×1, 23cm Shaft (US-23) ×1, Transducer (HP-100) ×1
Optional Accessories: 14cm/36cm Shafts and Transducers Available for Separate Purchase |
Applicable Industries:
Pet Medical Industry, Large-scale Livestock Veterinary Surgery, Animal Diagnosis & Treatment Institutions, Surgical Laboratories of Animal Research Institutes
Target Users:
Surgeons in Pet Hospitals, Livestock Veterinary Surgeons, Heads of Animal Diagnosis & Treatment Institutions, Animal Researchers
Application Environments:
Operating Rooms of Pet Hospitals, Livestock Veterinary Surgical Clinics, Animal Research Surgical Laboratories, Diagnosis Points of Large-scale Breeding Bases
Core Uses:
Multi-department Minimally Invasive Surgery for Animals, Precise Cutting & Coagulation Operations, Sterilization Surgery, Specialist Surgeries such as Hepatobiliary, Thoracic and Gastrointestinal Surgery
